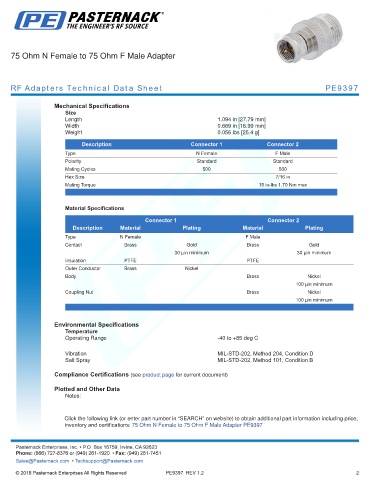

75 Ohm N Female to 75 Ohm F Male Adapter

RF Adapters Technical Data Sheet PE9397

Mechanical Specifications
Size
Length 1.094 in [27.79 mm]
Width 0.669 in [16.99 mm]
Weight 0.056 lbs [25.4 g]
.
Description Connector 1 Connector 2
Type N Female F Male
Polarity Standard Standard
Mating Cycles 500 500
Hex Size 7/16 in
Mating Torque 15 in-lbs 1.70 Nm max
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type N Female F Male
Contact Brass Gold Brass Gold
30 µin minimum 30 µin minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
.
Vibration MIL-STD-202, Method 204, Condition D
Salt Spray MIL-STD-202, Method 101, Condition B
Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to 75 Ohm F Male Adapter PE9397
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9397 REV 1.2 2
