75 Ohm N Female to 75 Ohm F Male Adapter
RF Adapters Technical Data Sheet PE9397

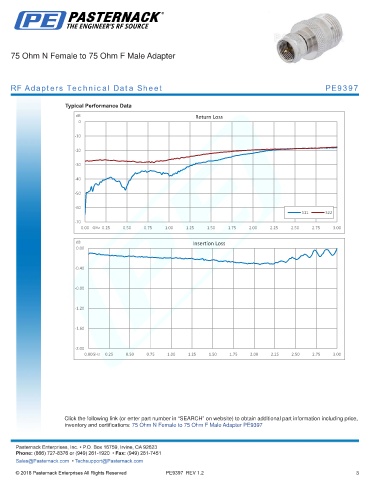

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0.00GHz 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to 75 Ohm F Male Adapter PE9397
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
