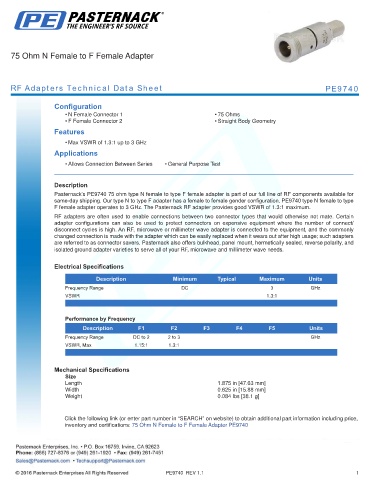

75 Ohm N Female to F Female Adapter

RF Adapters Technical Data Sheet PE9740

Configuration
• N Female Connector 1 • 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.3:1 up to 3 GHz
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9740 75 ohm type N female to type F female adapter is part of our full line of RF components available for
same-day shipping. Our type N to type F adapter has a female to female gender configuration. PE9740 type N female to type
F female adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 2 2 to 3 GHz
VSWR, Max 1.15:1 1.3:1
.

Mechanical Specifications
Size
Length 1.875 in [47.63 mm]
Width 0.625 in [15.88 mm]
Weight 0.084 lbs [38.1 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to F Female Adapter PE9740
