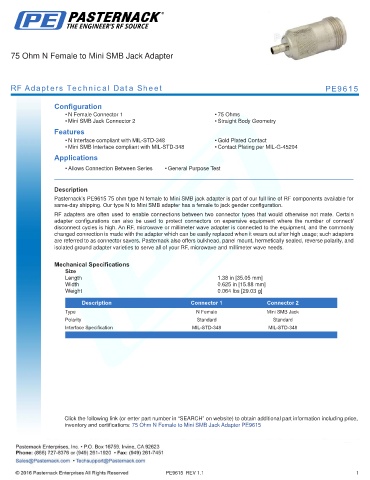

75 Ohm N Female to Mini SMB Jack Adapter

RF Adapters Technical Data Sheet PE9615

Configuration
• N Female Connector 1 • 75 Ohms
• Mini SMB Jack Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Gold Plated Contact
• Mini SMB Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9615 75 ohm type N female to Mini SMB jack adapter is part of our full line of RF components available for
same-day shipping. Our type N to Mini SMB adapter has a female to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.38 in [35.05 mm]
Width 0.625 in [15.88 mm]
Weight 0.064 lbs [29.03 g]
.
Description Connector 1 Connector 2
Type N Female Mini SMB Jack
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to Mini SMB Jack Adapter PE9615

PE9615 REV 1.1 1
