Bench-Top 95 dB Programmable TTL Controlled Attenuator, SMA
Female to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

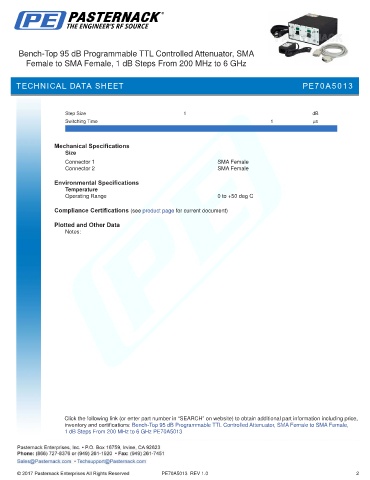

TECHNICAL DATA SHEET PE70A5013

.
Step Size 1 dB
Switching Time 1 µs
. .

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range 0 to +50 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bench-Top 95 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
1 dB Steps From 200 MHz to 6 GHz PE70A5013

PE70A5013 REV 1.0 2
