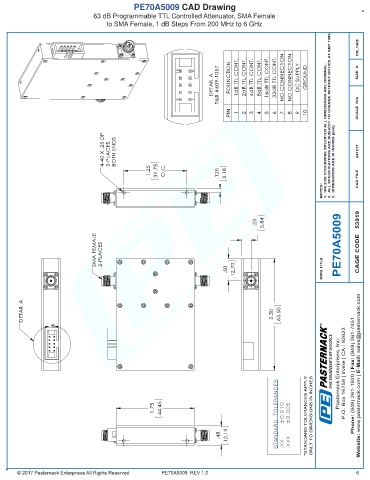

PE70A5009 CAD Drawing
63 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

CN_1408

10 9 FOUNCTION 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. NO CONNECTION NO CONNECTION DC SUPPLY GROUND SIZE A
DETAIL A T&B #609-1057

2 1
PIN 1 2 3 4 5 6 7 8 9 10 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

4-40 X .25 DP 2-PLACES BOTH ENDS 041217

1.25 31.75 O.C. .125 3.18 3. DIMENSIONS ARE IN INCHES [mm].

CAD FILE
NOTES:

.23 5.84

SMA FEMALE 2-PLACES PE70A5009 CAGE CODE 53919

.50 12.70 DWG TITLE

DETAIL A 2.50 63.50

A R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

1.75 44.45

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.XX ±0.010 .XXX ±0.005
.48 12.19

PE70A5009 REV 1.0 6
