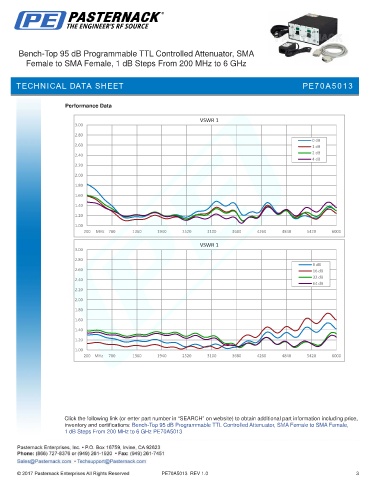

Bench-Top 95 dB Programmable TTL Controlled Attenuator, SMA
Female to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

TECHNICAL DATA SHEET PE70A5013

Performance Data

VSWR 1
3.00
2.80
0 dB
2.60 1 dB
2.40 2 dB
4 dB
2.20
2.00
1.80
1.60
1.40
1.20
1.00
200 MHz 780 1360 1940 2520 3100 3680 4260 4840 5420 6000

VSWR 1
3.00
2.80
8 dB
2.60 16 dB
32 dB
2.40
64 dB
2.20
2.00
1.80
1.60
1.40

1.20
1.00
200 MHz 780 1360 1940 2520 3100 3680 4260 4840 5420 6000

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bench-Top 95 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
1 dB Steps From 200 MHz to 6 GHz PE70A5013

PE70A5013 REV 1.0 3
