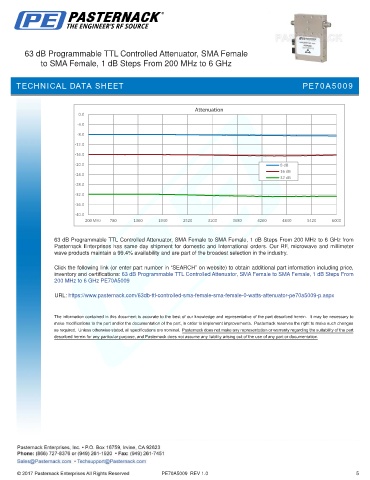

63 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 200 MHz to 6 GHz

TECHNICAL DATA SHEET PE70A5009

Attenuation
0.0
-4.0
-8.0
-12.0
-16.0
-20.0 8 dB
16 dB
-24.0
32 dB
-28.0
-32.0
-36.0
-40.0
200 MHz 780 1360 1940 2520 3100 3680 4260 4840 5420 6000

63 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps From 200 MHz to 6 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 63 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps From
200 MHz to 6 GHz PE70A5009

URL: https://www.pasternack.com/63db-ttl-controlled-sma-female-sma-female-0-watts-attenuator-pe70a5009-p.aspx

PE70A5009 REV 1.0 5
