127 dB Programmable TTL Controlled Attenuator, 75 F Female
to 75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz

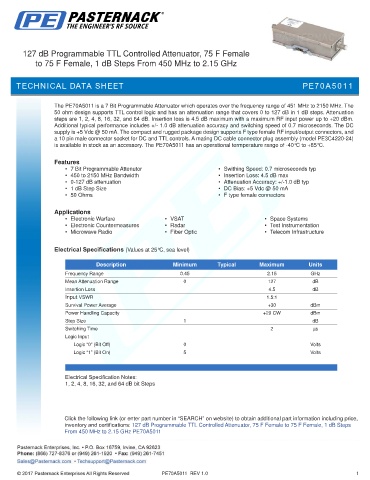

TECHNICAL DATA SHEET PE70A5011

The PE70A5011 is a 7 Bit Programmable Attenuator which operates over the frequency range of 451 MHz to 2150 MHz. The
50 ohm design supports TTL control logic and has an attenuation range that covers 0 to 127 dB in 1 dB steps. Attenuation
steps are 1, 2, 4, 8, 16, 32, and 64 dB. Insertion loss is 4.5 dB maximum with a maximum RF input power up to +20 dBm.
Additional typical performance includes +/- 1.0 dB attenuation accuracy and switching speed of 0.7 microseconds. The DC
supply is +5 Vdc @ 50 mA. The compact and rugged package design supports F type female RF input/output connectors, and
a 10 pin male connector socket for DC and TTL controls. A mating DC cable connector plug assembly (model PE3C4220-24)
is available in stock as an accessory. The PE70A5011 has an operational termperature range of -40°C to +85°C.

Features
• 7 Bit Programmable Attenutor • Swithing Speed: 0.7 microseconds typ
• 450 to 2150 MHz Bandwidth • Insertion Loss: 4.5 dB max
• 0-127 dB attenuation • Attenuation Accuracy: +/-1.0 dB typ
• 1 dB Step Size • DC Bias: +5 Vdc @ 50 mA
• 50 Ohms • F type female connectors

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.45 2.15 GHz
Mean Attenuation Range 0 127 dB
Insertion Loss 4.5 dB
Input VSWR 1.5:1
Survival Power Average +30 dBm
Power Handling Capacity +20 CW dBm
Step Size 1 dB
Switching Time 2 µs
Logic Input
Logic “0” (Bit Off) 0 Volts
Logic “1” (Bit On) 5 Volts
.
. .
Electrical Specification Notes:
1, 2, 4, 8, 16, 32, and 64 dB bit Steps

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
From 450 MHz to 2.15 GHz PE70A5011

PE70A5011 REV 1.0 1
