127 dB Programmable TTL Controlled Attenuator, 75 F Female
to 75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz

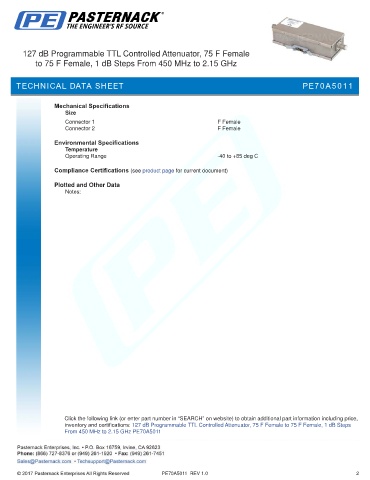

TECHNICAL DATA SHEET PE70A5011

Mechanical Specifications
Size
.
Connector 1 F Female
Connector 2 F Female

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
From 450 MHz to 2.15 GHz PE70A5011

PE70A5011 REV 1.0 2
