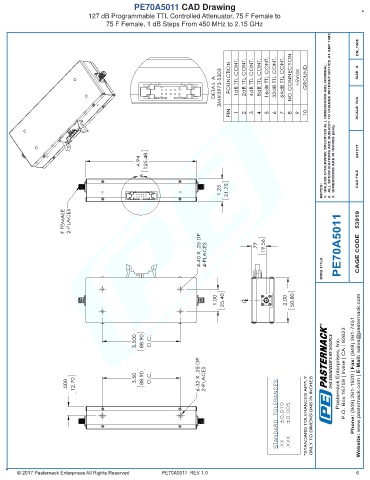

PE70A5011 CAD Drawing
127 dB Programmable TTL Controlled Attenuator, 75 F Female to
75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz

CN_1408

2 10 DETAIL A 3M#3973-5303 FOUNCTION 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. 64dB TTL CONT. NO CONNECTION +5Vdc GROUND SIZE A
1 9
PIN 1 2 3 4 5 6 7 8 9 10 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

041217
4.94 125.48 3. DIMENSIONS ARE IN INCHES [mm].

A
CAD FILE
1.25 31.75 NOTES:

F FEMALE 2-PLACES

4-40 X .25 DP 4-PLACES .77 19.56 PE70A5011 CAGE CODE 53919

DWG TITLE

1.00 25.40 C L 2.00 50.80

R
3.500 88.90 O.C.

3.50 88.90 O.C. 6-32 X .25 DP 2-PLACES THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.500 12.70
STANDARD TOLERANCES .XX ±0.010 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE70A5011 REV 1.0 6
