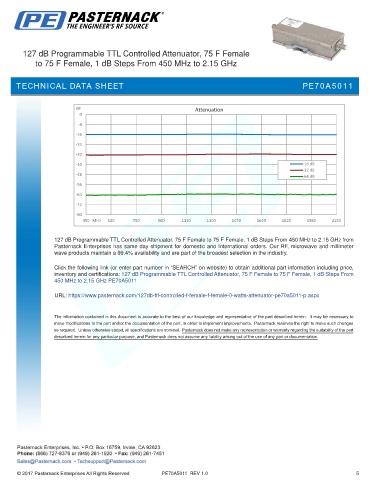

127 dB Programmable TTL Controlled Attenuator, 75 F Female
to 75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz

TECHNICAL DATA SHEET PE70A5011

dB Attenuation
0
-8
-16
-24
-32
-40 16 dB
32 dB
-48 64 dB

-56
-64
-72
-80
450 MHz 620 790 960 1130 1300 1470 1640 1810 1980 2150

127 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps From
450 MHz to 2.15 GHz PE70A5011

URL: https://www.pasternack.com/127db-ttl-controlled-f-female-f-female-0-watts-attenuator-pe70a5011-p.aspx

PE70A5011 REV 1.0 5
