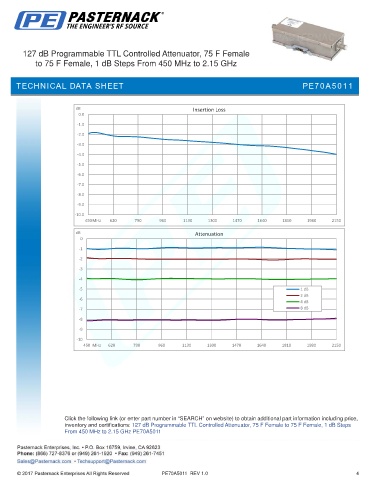

127 dB Programmable TTL Controlled Attenuator, 75 F Female
to 75 F Female, 1 dB Steps From 450 MHz to 2.15 GHz

TECHNICAL DATA SHEET PE70A5011

dB Insertion Loss
0.0
-1.0
-2.0
-3.0
-4.0
-5.0
-6.0

-7.0
-8.0
-9.0
-10.0
450MHz 620 790 960 1130 1300 1470 1640 1810 1980 2150
dB Attenuation
0
-1
-2
-3
-4
-5 1 dB
2 dB
-6
4 dB
-7 8 dB
-8
-9
-10
450 MHz 620 790 960 1130 1300 1470 1640 1810 1980 2150

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
From 450 MHz to 2.15 GHz PE70A5011
