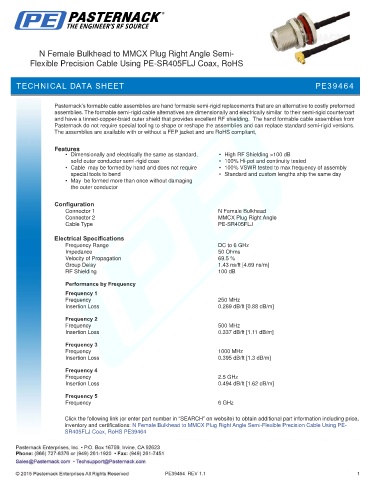

N Female Bulkhead to MMCX Plug Right Angle Semi-
Flexible Precision Cable Using PE-SR405FLJ Coax, RoHS

TECHNICAL D PE39464
TECHNICAL DATA SHEETATA SHEET

Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly preformed
assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-rigid counterpart
and have a tinned-copper-braid outer shield that provides excellent RF shielding. The hand formable cable assemblies from
Pasternack do not require special tooling to shape or reshape the assemblies and can replace standard semi-rigid versions.
The assemblies are available with or without a FEP jacket and are RoHS compliant,

Features
• Dimensionally and electrically the same as standard, • High RF Shielding >100 dB
solid outer conductor semi-rigid coax • 100% Hi-pot and continuity tested
• Cable may be formed by hand and does not require • 100% VSWR tested to max frequency of assembly
special tools to bend • Standard and custom lengths ship the same day
• May be formed more than once without damaging
the outer conductor

Configuration
Connector 1 N Female Bulkhead
Connector 2 MMCX Plug Right Angle
Cable Type PE-SR405FLJ
Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Velocity of Propagation 69.5 %
Group Delay 1.43 ns/ft [4.69 ns/m]
RF Shielding 100 dB

Performance by Frequency
Frequency 1
Frequency 250 MHz
Insertion Loss 0.269 dB/ft [0.88 dB/m]

Frequency 2
Frequency 500 MHz
Insertion Loss 0.337 dB/ft [1.11 dB/m]
Frequency 3
Frequency 1000 MHz
Insertion Loss 0.395 dB/ft [1.3 dB/m]

Frequency 4
Frequency 2.5 GHz
Insertion Loss 0.494 dB/ft [1.62 dB/m]

Frequency 5
Frequency 6 GHz

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to MMCX Plug Right Angle Semi-Flexible Precision Cable Using PE-
SR405FLJ Coax, RoHS PE39464

PE39464 REV 1.1 1
