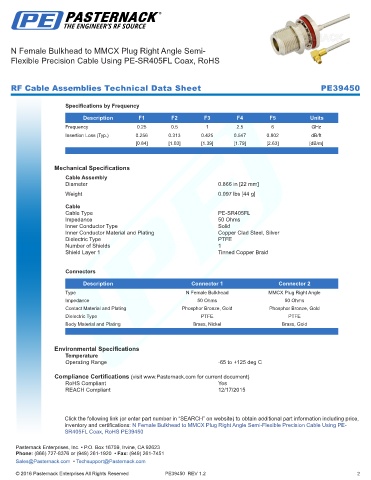

N Female Bulkhead to MMCX Plug Right Angle Semi-
Flexible Precision Cable Using PE-SR405FL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE39450

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 6 GHz
Insertion Loss (Typ.) 0.256 0.313 0.425 0.547 0.802 dB/ft
[0.84] [1.03] [1.39] [1.79] [2.63] [dB/m]
.

Mechanical Specifications
Cable Assembly
Diameter 0.866 in [22 mm]
.
Weight 0.097 lbs [44 g]

Cable
Cable Type PE-SR405FL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
.
Connectors

Description Connector 1 Connector 2
Type N Female Bulkhead MMCX Plug Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Gold
.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/17/2015

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to MMCX Plug Right Angle Semi-Flexible Precision Cable Using PE-
SR405FL Coax, RoHS PE39450

PE39450 REV 1.2 2
