N Female Bulkhead to N Male Cable
Using PE-141FLEX Coax, RoHS

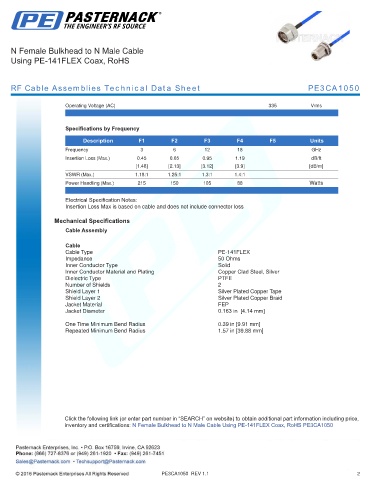

RF Cable Assemblies Technical Data Sheet PE3CA1050

Operating Voltage (AC) 335 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 6 12 18 GHz
Insertion Loss (Max.) 0.45 0.65 0.95 1.19 dB/ft
[1.48] [2.13] [3.12] [3.9] [dB/m]
VSWR (Max.) 1.18:1 1.25:1 1.3:1 1.4:1
Power Handling (Max.) 215 150 105 88 Watts
.
Electrical Specification Notes:
Insertion Loss Max is based on cable and does not include connector loss

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-141FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.163 in [4.14 mm]
.
One Time Minimum Bend Radius 0.39 in [9.91 mm]
Repeated Minimum Bend Radius 1.57 in [39.88 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to N Male Cable Using PE-141FLEX Coax, RoHS PE3CA1050
