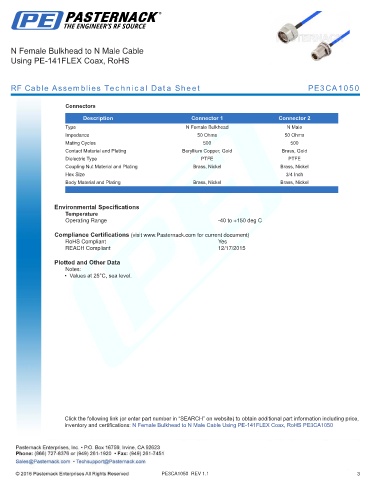

N Female Bulkhead to N Male Cable
Using PE-141FLEX Coax, RoHS
RF Cable Assemblies Technical Data Sheet PE3CA1050
Connectors
Description Connector 1 Connector 2
Type N Female Bulkhead N Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Hex Size 3/4 Inch
Body Material and Plating Brass, Nickel Brass, Nickel
.
Environmental Specifications
Temperature
Operating Range -40 to +150 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to N Male Cable Using PE-141FLEX Coax, RoHS PE3CA1050
PE3CA1050 REV 1.1 3
