N Female Bulkhead to N Male Cable
Using PE-141FLEX Coax, RoHS

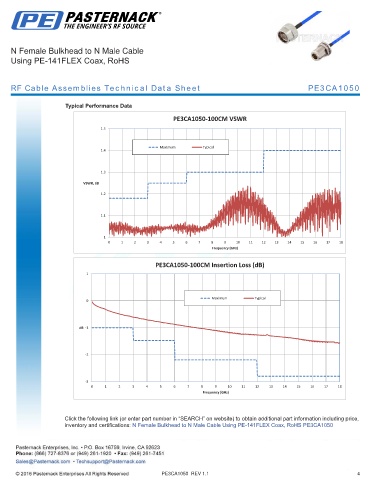

RF Cable Assemblies Technical Data Sheet PE3CA1050

Typical Performance Data

PE3CA1050-100CM VSWR
1.5

Maximum Typical
1.4

1.3
VSWR, dB

1.2

1.1

1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Frequency (GHz)

PE3CA1050-100CM Insertion Loss (dB)
1

Maximum Typical
0

dB -1

-2

-3
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to N Male Cable Using PE-141FLEX Coax, RoHS PE3CA1050

PE3CA1050 REV 1.1 4
