Page 1439 - BNC to N RF Cable Assembly Datasheets
P. 1439

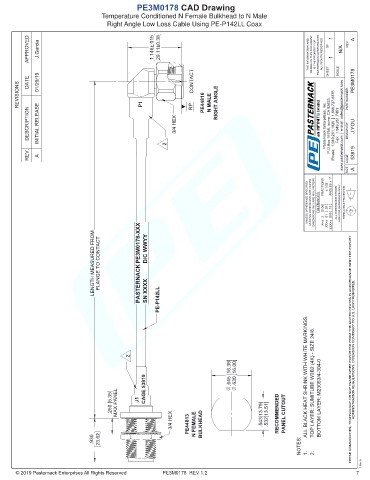

PE3M0178 CAD Drawing
Temperature Conditioned N Female Bulkhead to N Male
Right Angle Low Loss Cable Using PE-P142LL Coax
1 A
APPROVED J.Garcia 1.146±.015 29.11±0.38 THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. N/A REV
SHEET OF 1 SCALE
REVISIONS DATE 01/29/19 P1 RP CONTACT PE44816 N MALE RIGHT ANGLE PART NUMBER PE3M0178
DESCRIPTION INITIAL RELEASE 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU
REV. A 2 CAGE SIZE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM FLANGE TO CONTACT PASTERNACK PE3M0178-XXX D/C WWYY SN XXXX PE-P142LL
2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.645 [16.38] .630 [16.00] ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.
.250 [5.35] MAX PANEL J1 CAGE 53919 BOTTOM LAYER: M23053/4-304-0
3/4 HEX PE44813 N FEMALE BULKHEAD .543[13.79] .532[13.51] RECOMMENDED PANEL CUTOUT
Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.930 23.62
NOTES: 1. 2.
T-Rev.A
PE3M0178 REV 1.2 7
