Page 2618 - BNC to N RF Cable Assembly Datasheets

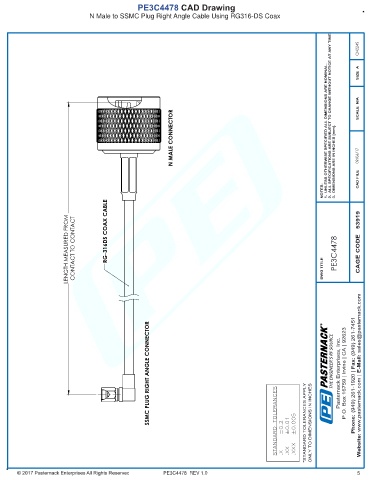

PE3C4478 CAD Drawing
N Male to SSMC Plug Right Angle Cable Using RG316-DS Coax

CN2245

SIZE A

N MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. DIMENSIONS ARE IN INCHES [mm]. 09/06/17 SCALE N/A

NOTES: 1. 2. 3. CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT RG-316DS COAX CABLE DWG TITLE PE3C4478 CAGE CODE 53919

SSMC PLUG RIGHT ANGLE CONNECTOR STANDARD TOLERANCES R THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

PE3C4478 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES 5
