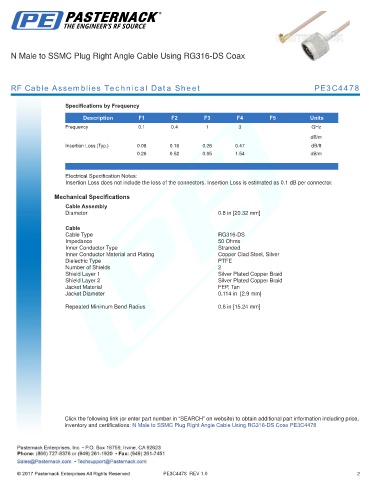

N Male to SSMC Plug Right Angle Cable Using RG316-DS Coax

RF Cable Assemblies Technical Data Sheet PE3C4478

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.4 1 3 GHz
dB/m
Insertion Loss (Typ.) 0.08 0.16 0.26 0.47 dB/ft
0.26 0.52 0.85 1.54 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1 dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.8 in [20.32 mm]
.
Cable
Cable Type RG316-DS
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.114 in [2.9 mm]
.
Repeated Minimum Bend Radius 0.6 in [15.24 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to SSMC Plug Right Angle Cable Using RG316-DS Coax PE3C4478

PE3C4478 REV 1.0 2
