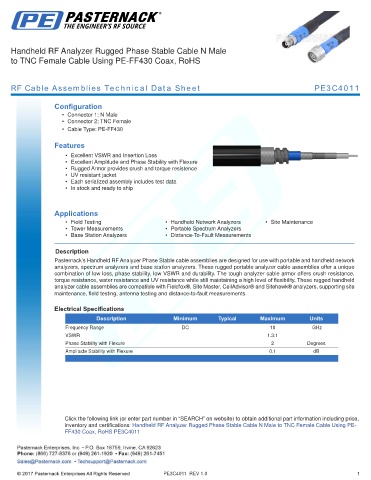

Handheld RF Analyzer Rugged Phase Stable Cable N Male
to TNC Female Cable Using PE-FF430 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C4011

Configuration
• Connector 1: N Male
• Connector 2: TNC Female
• Cable Type: PE-FF430

Features
• Excellent VSWR and Insertion Loss
• Excellent Amplitude and Phase Stability with Flexure
• Rugged Armor provides crush and torque resistence
• UV resistant jacket
• Each serialized assembly includes test data
• In stock and ready to ship

Applications
• Field Testing • Handheld Network Analyzers • Site Maintenance
• Tower Measurements • Portable Spectrum Analyzers
• Base Station Analyzers • Distance-To-Fault Measurements
.
Description
Pasternack’s Handheld RF Analyzer Phase Stable cable assemblies are designed for use with portable and handheld network
analyzers, spectrum analyzers and base station analyzers. These rugged portable analyzer cable assemblies offer a unique
combination of low loss, phase stability, low VSWR and durability. The tough analyzer cable armor offers crush resistance,
torque resistance, water resistance and UV resistance while still maintaining a high level of flexibility. These rugged handheld
analyzer cable assemblies are compatible with Fieldfox®, Site Master, CellAdvisor® and Sitehawk® analyzers, supporting site
maintenance, field testing, antenna testing and distance-to-fault measurements.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.3:1
Phase Stability with Flexure 2 Degrees
Amplitude Stability with Flexure 0.1 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Handheld RF Analyzer Rugged Phase Stable Cable N Male to TNC Female Cable Using PE-
FF430 Coax, RoHS PE3C4011

PE3C4011 REV 1.0 1
