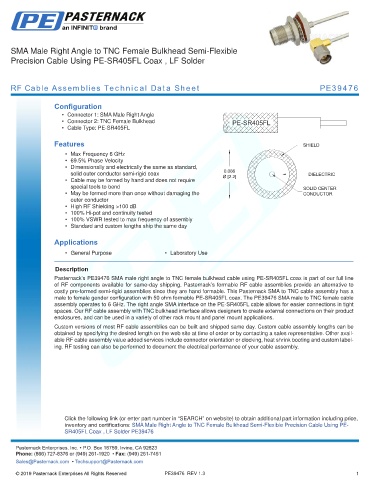

SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR405FL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE39476

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: TNC Female Bulkhead
• Cable Type: PE-SR405FL

Features
• Max Frequency 6 GHz
• 69.5% Phase Velocity
• Dimensionally and electrically the same as standard,
solid outer conductor semi-rigid coax
• Cable may be formed by hand and does not require
special tools to bend
• May be formed more than once without damaging the
outer conductor
• High RF Shielding >100 dB
• 100% Hi-pot and continuity tested
• 100% VSWR tested to max frequency of assembly
• Standard and custom lengths ship the same day

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE39476 SMA male right angle to TNC female bulkhead cable using PE-SR405FL coax is part of our full line
of RF components available for same-day shipping. Pasternack’s formable RF cable assemblies provide an alternative to
costly pre-formed semi-rigid assemblies since they are hand formable. This Pasternack SMA to TNC cable assembly has a
male to female gender configuration with 50 ohm formable PE-SR405FL coax. The PE39476 SMA male to TNC female cable
assembly operates to 6 GHz. The right angle SMA interface on the PE-SR405FL cable allows for easier connections in tight
spaces. Our RF cable assembly with TNC bulkhead interface allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible Precision Cable Using PE-
SR405FL Coax , LF Solder PE39476 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE39476 REV 1.3 1
