SMA Male Right Angle to TNC Female
Bulkhead Cable Using LMR-195 Coax

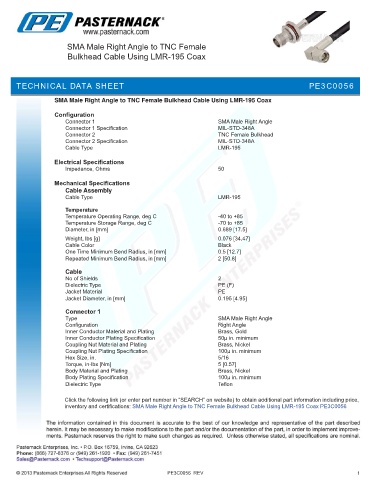

TECHNICAL D PE3C0056
TECHNICAL DATA SHEETATA SHEET

SMA Male Right Angle to TNC Female Bulkhead Cable Using LMR-195 Coax

Configuration
Connector 1 SMA Male Right Angle
Connector 1 Specification MIL-STD-348A
Connector 2 TNC Female Bulkhead
Connector 2 Specification MIL-STD-348A
Cable Type LMR-195

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-195
Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.689 [17.5]
.
Weight, lbs [g] 0.076 [34.47]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.5 [12.7]
Repeated Minimum Bend Radius, in [mm] 2 [50.8]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.195 [4.95]
Connector 1
Type SMA Male Right Angle
Configuration Right Angle
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Hex Size, in. 5/16
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to TNC Female Bulkhead Cable Using LMR-195 Coax PE3C0056

PE3C0056 REV 1
