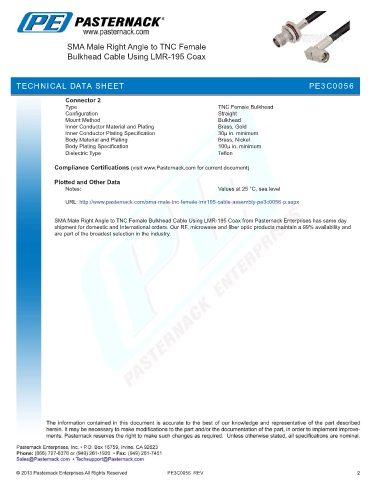

SMA Male Right Angle to TNC Female
Bulkhead Cable Using LMR-195 Coax

TECHNICAL D PE3C0056
TECHNICAL DATA SHEETATA SHEET

Connector 2
Type TNC Female Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/sma-male-tnc-female-lmr195-cable-assembly-pe3c0056-p.aspx

SMA Male Right Angle to TNC Female Bulkhead Cable Using LMR-195 Coax from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

PE3C0056 REV 2
