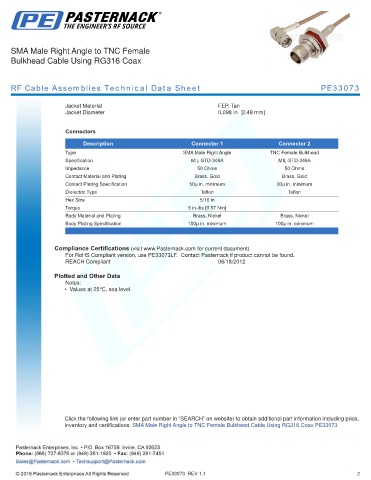

SMA Male Right Angle to TNC Female
Bulkhead Cable Using RG316 Coax
RF Cable Assemblies Technical Data Sheet PE33073
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.
Connectors
Description Connector 1 Connector 2
Type SMA Male Right Angle TNC Female Bulkhead
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 50µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Hex Size 5/16 in
Torque 5 in-lbs [0.57 Nm]
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE33073LF. Contact Pasternack if product cannot be found.
REACH Compliant 06/18/2012
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to TNC Female Bulkhead Cable Using RG316 Coax PE33073
PE33073 REV 1.1 2
