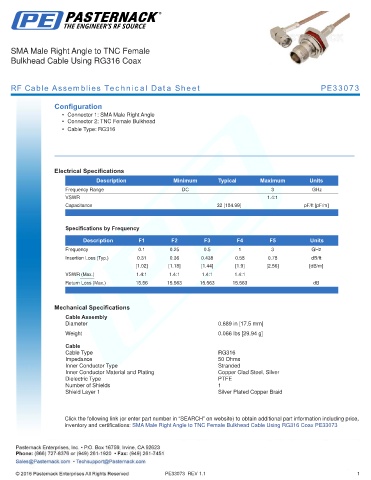

SMA Male Right Angle to TNC Female
Bulkhead Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE33073

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: TNC Female Bulkhead
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Capacitance 32 [104.99] pF/ft [pF/m]
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Typ.) 0.31 0.36 0.438 0.58 0.78 dB/ft
[1.02] [1.18] [1.44] [1.9] [2.56] [dB/m]
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.689 in [17.5 mm]
.
Weight 0.066 lbs [29.94 g]

Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to TNC Female Bulkhead Cable Using RG316 Coax PE33073

PE33073 REV 1.1 1
