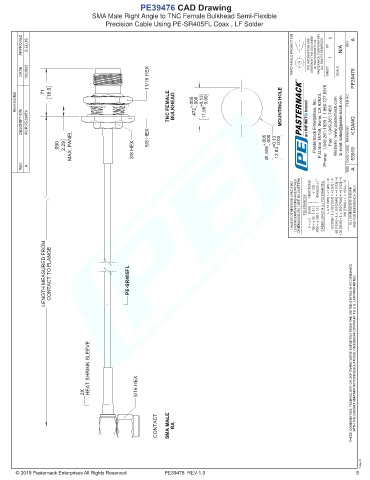

PE39476 CAD Drawing
SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR405FL Coax , LF Solder

APPROVED S.ELLIS THIRD-ANGLE PROJECTION THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 1/6/2020 SHEET OF SCALE

11/16 HEX PE39476
REVISIONS .71 18.0 TNC FEMALE BULKHEAD .472 +.005 -.000 11.99 +0.13 0.00 MOUNTING HOLE ITEM NO.

DESCRIPTION PCR PE39476 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 Website: www.pasternack.com E-mail: sales@pasternack.com DRAWN BY K.DANG

MAX. PANEL 5/8 HEX -.000 0.00
.090 2.29 3/8 HEX Ø .505 +.005 12.83 +0.13 CAGE CODE 53919

REV. A SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .X = ±.2 [5.08] ± 1/32 .02 [ .51 ] .XX = ± ANGLES ± 1° .XXX = ±.005 [ .13 ] CABLE LENGTH (L) TOLERANCES: L ≤ 12 [305] = +1 [25] / -0 12 [305] < L ≤ 60 [1524] = +2 [51] / -0 60 [1524] < L ≤ 120 [3048] = +4 [102] / -0 120 [3048] < L ≤

LENGTH MEASURED FROM CONTACT TO FLANGE PE-SR405FL

HEAT SHRINK SLEEVE THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

2X 5/16 HEX

CONTACT SMA MALE RA -

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.D
PE39476 REV 1.3 5
