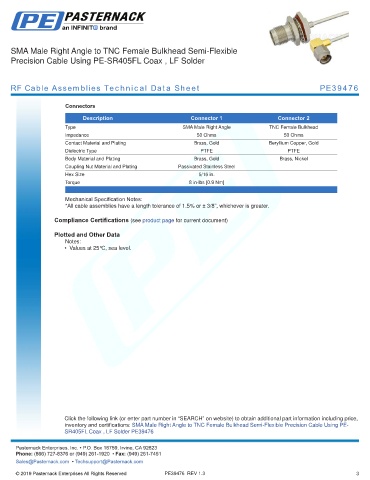

SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR405FL Coax , LF Solder
RF Cable Assemblies Technical Data Sheet PE39476
Connectors
Description Connector 1 Connector 2
Type SMA Male Right Angle TNC Female Bulkhead
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Gold Brass, Nickel
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 5/16 in.
Torque 8 in-lbs [0.9 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to TNC Female Bulkhead Semi-Flexible Precision Cable Using PE-
SR405FL Coax , LF Solder PE39476 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE39476 REV 1.3 3
