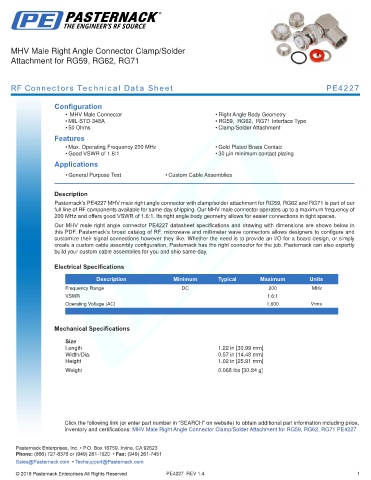

MHV Male Right Angle Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4227

Configuration
• MHV Male Connector • Right Angle Body Geometry
• MIL-STD-348A • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 200 MHz • Gold Plated Brass Contact
• Good VSWR of 1.6:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4227 MHV male right angle connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Our MHV male connector operates up to a maximum frequency of
200 MHz and offers good VSWR of 1.6:1. Its right angle body geometry allows for easier connections in tight spaces.
Our MHV male right angle connector PE4227 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 200 MHz
VSWR 1.6:1
Operating Voltage (AC) 1,600 Vrms
.

Mechanical Specifications

Size
Length 1.22 in [30.99 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.02 in [25.91 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Right Angle Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4227
-
