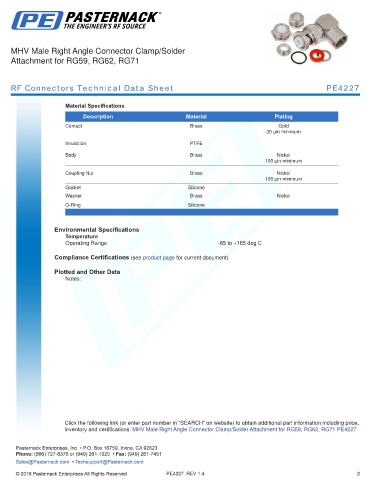

MHV Male Right Angle Connector Clamp/Solder
Attachment for RG59, RG62, RG71
RF Connectors Technical Data Sheet PE4227
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
Coupling Nut Brass Nickel
100 µin minimum
Gasket Silicone
Washer Brass Nickel
O-Ring Silicone
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Right Angle Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4227
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE4227 REV 1.4 2
