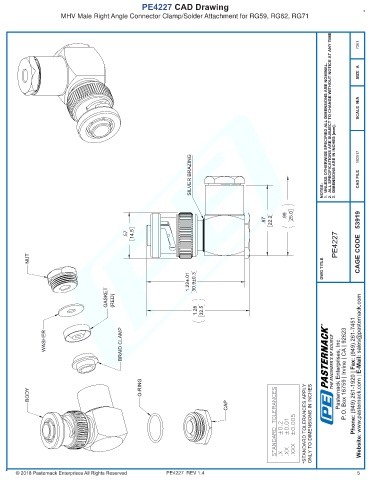

PE4227 CAD Drawing
MHV Male Right Angle Connector Clamp/Solder Attachment for RG59, RG62, RG71

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

SILVER BRAZING NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 102517 CAD FILE

.99 25.0
.87 22.2

.57 14.5
PE4227 CAGE CODE 53919
NUT

DWG TITLE
1.22±.01 30.9±0.3

GASKET (RED)

1.28 32.5

R
P.O. Box 16759 | Irvine | CA | 92623
WASHER BRAID CLAMP THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

O-RING Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
BODY
CAP

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4227 REV 1.4 5
