MHV Male Right Angle Connector Clamp/Solder Attachment
For RG213, RG214, RG8, RG9, RG11, RG225, RG393

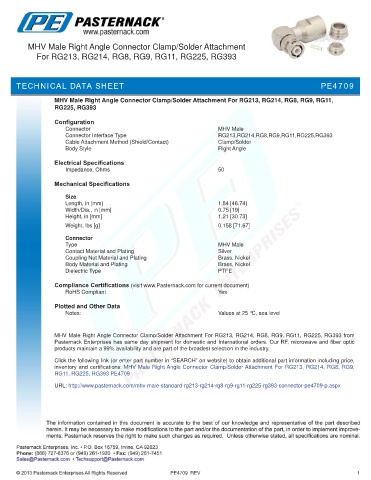

TECHNICAL DATA SHEET PE4709

MHV Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11,
RG225, RG393

Configuration
Connector MHV Male
Connector Interface Type RG213,RG214,RG8,RG9,RG11,RG225,RG393
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.84 [46.74]
Width/Dia., in [mm] 0.75 [19]
Height, in [mm] 1.21 [30.73]
.
Weight, lbs [g] 0.158 [71.67]
Connector
Type MHV Male
Contact Material and Plating Silver
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

MHV Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG11, RG225, RG393 from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9,
RG11, RG225, RG393 PE4709

URL: http://www.pasternack.com/mhv-male-standard-rg213-rg214-rg8-rg9-rg11-rg225-rg393-connector-pe4709-p.aspx

PE4709 REV 1
