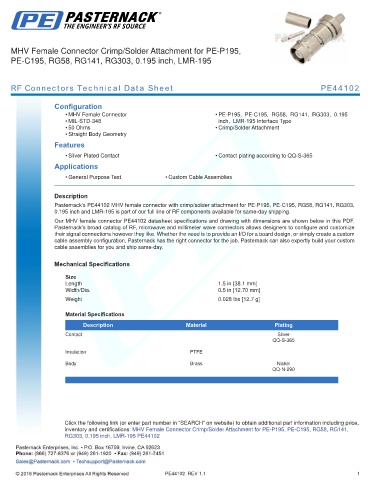

MHV Female Connector Crimp/Solder Attachment for PE-P195,
PE-C195, RG58, RG141, RG303, 0.195 inch, LMR-195

RF Connectors Technical Data Sheet PE44102

Configuration
• MHV Female Connector • PE-P195, PE-C195, RG58, RG141, RG303, 0.195
• MIL-STD-348 inch, LMR-195 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44102 MHV female connector with crimp/solder attachment for PE-P195, PE-C195, RG58, RG141, RG303,
0.195 inch and LMR-195 is part of our full line of RF components available for same-day shipping.
Our MHV female connector PE44102 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.028 lbs [12.7 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Crimp/Solder Attachment for PE-P195, PE-C195, RG58, RG141,
RG303, 0.195 inch, LMR-195 PE44102

PE44102 REV 1.1 1
