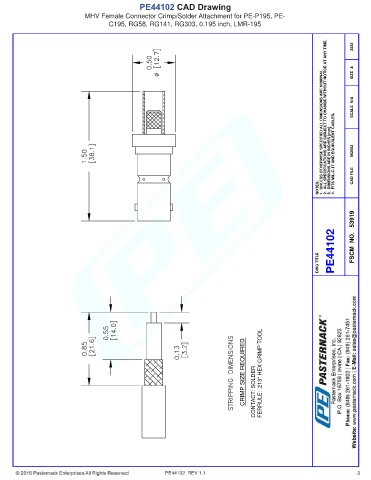

PE44102 CAD Drawing
MHV Female Connector Crimp/Solder Attachment for PE-P195, PE-
C195, RG58, RG141, RG303, 0.195 inch, LMR-195
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062502
NOTES: CAD FILE
PE44102 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .213" HEX CRIMP TOOL
PE44102 REV 1.1 3
