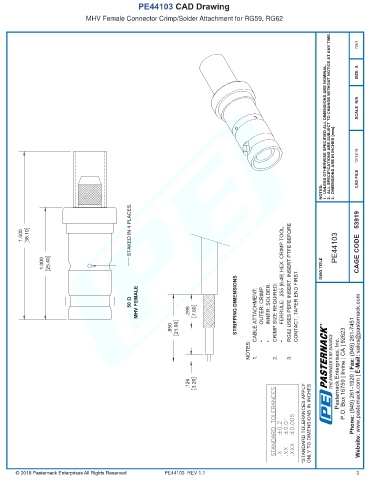

PE44103 CAD Drawing
MHV Female Connector Crimp/Solder Attachment for RG59, RG62

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
7361

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 12/13/18

NOTES: CAD FILE

STAKED IN 4 PLACES.

1.500 38.10

PE44103 CAGE CODE 53919

1.000 25.40 DWG TITLE

FERRULE: .255 [6.48] HEX. CRIMP TOOL.

50 Ω MHV FEMALE STRIPPING DIMENSIONS OUTER: CRIMP. INNER: SOLDER. 3. RG62 USES PEFE INSERT. INSERT PTFE BEFORE CONTACT. TAPER END FIRST.

.299 7.60 CABLE ATTACHMENT: CRIMP SIZE REQUIRED:
.850 21.60 R
P.O. Box 16759 | Irvine | CA | 92623
• • •
Pasternack Enterprises, Inc.
NOTES: 1. 2. THE ENGINEER'S RF SOURCE

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.126 3.20
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44103 REV 1.1 3
