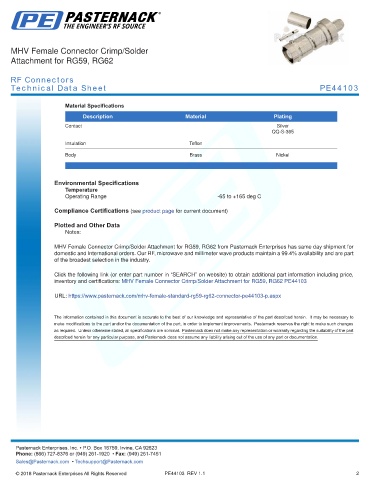

MHV Female Connector Crimp/Solder
Attachment for RG59, RG62

RF Connectors
Technical Data Sheet PE44103

Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation Teflon
Body Brass Nickel

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female Connector Crimp/Solder Attachment for RG59, RG62 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part
of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Crimp/Solder Attachment for RG59, RG62 PE44103

URL: https://www.pasternack.com/mhv-female-standard-rg59-rg62-connector-pe44103-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44103 REV 1.1 2
