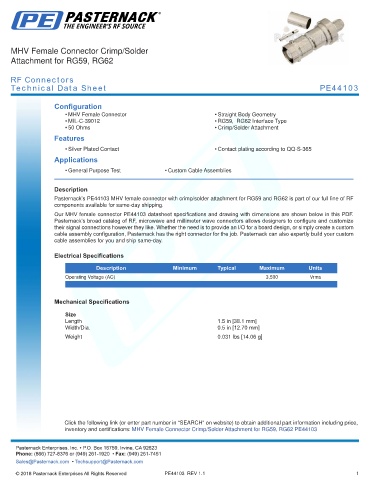

MHV Female Connector Crimp/Solder
Attachment for RG59, RG62

RF Connectors
Technical Data Sheet PE44103

Configuration
• MHV Female Connector • Straight Body Geometry
• MIL-C-39012 • RG59, RG62 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44103 MHV female connector with crimp/solder attachment for RG59 and RG62 is part of our full line of RF
components available for same-day shipping.
Our MHV female connector PE44103 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Operating Voltage (AC) 3,500 Vrms
.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.5 in [12.70 mm]
.
Weight 0.031 lbs [14.06 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Crimp/Solder Attachment for RG59, RG62 PE44103 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44103 REV 1.1 1
