MHV Male Right Angle Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4227

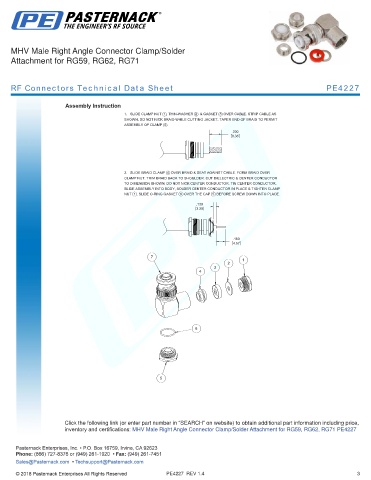

Assembly Instruction
1. SLIDE CLAMP NUT 1 , THIN-WASHER 2 & GASKET 3 OVER CABLE. STRIP CABLE AS
SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID TO PERMIT
ASSEMBLY OF CLAMP 4 .
.330
8.38

2. SLIDE BRAID CLAMP 4 OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER
CLAMP NUT. TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER CONDUCTOR
TO DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR. TIN CENTER CONDUCTOR.
SLIDE ASSEMBLY INTO BODY, SOLDER CENTER CONDUCTOR IN PLACE & TIGHTEN CLAMP
NUT 1 . SLIDE O-RING GASKET 6 OVER THE CAP 5 BEFORE SCREW DOWN INTO PLACE.
.130
3.30

.180
4.57
7 1
2
3
4

6

5

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Male Right Angle Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4227
-
