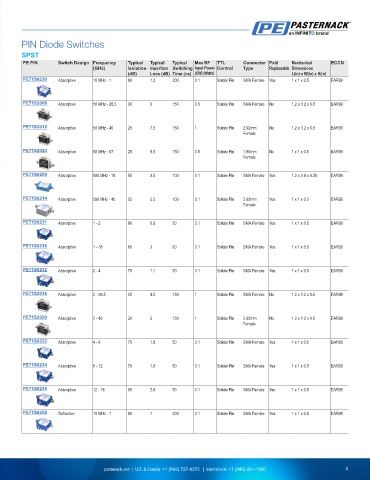

PIN Diode Switches
SPST
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6230 Absorptive 10 MHz - 1 80 1.3 200 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S2008 Absorptive 50 MHz - 26.5 30 5 150 0.5 Solder Pin SMA Female No 1.2 x 1.2 x 0.6 EAR99

PE71S2012 Absorptive 50 MHz - 40 25 7.5 150 1 Solder Pin 2.92mm No 1.2 x 1.2 x 0.6 EAR99
Female

PE71S2024 Absorptive 50 MHz - 67 25 9.5 150 0.5 Solder Pin 1.85mm No 1 x 1 x 0.5 EAR99
Female

PE71S6209 Absorptive 500 MHz - 18 55 3.5 100 0.1 Solder Pin SMA Female Yes 1.2 x 0.9 x 0.35 EAR99

PE71S6214 Absorptive 500 MHz - 40 55 5.5 100 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female

PE71S6231 Absorptive 1 - 2 80 0.9 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6236 Absorptive 1 - 18 65 3 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6232 Absorptive 2 - 4 75 1.1 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S2016 Absorptive 2 - 26.5 25 4.5 150 1 Solder Pin SMA Female No 1.2 x 1.2 x 0.6 EAR99

PE71S2020 Absorptive 2 - 40 30 5 150 1 Solder Pin 2.92mm No 1.2 x 1.2 x 0.6 EAR99
Female

PE71S6233 Absorptive 4 - 8 75 1.8 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6234 Absorptive 8 - 12 70 1.8 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6235 Absorptive 12 - 18 65 2.8 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6258 Reflective 10 MHz - 1 80 1 200 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99
