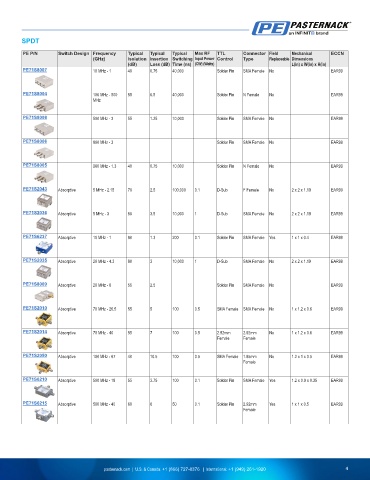

Page 5 - PIN Diode Switches Product Selection Guide

SPDT
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S8007 10 MHz - 1 40 0.75 40,000 Solder Pin SMA Female No EAR99

PE71S8004 100 MHz - 500 55 0.5 40,000 Solder Pin N Female No EAR99
MHz

PE71S8008 500 MHz - 3 55 1.25 10,000 Solder Pin SMA Female No EAR99

PE71S8006 800 MHz - 3 Solder Pin SMA Female No EAR99

PE71S8005 960 MHz - 1.3 40 0.75 10,000 Solder Pin N Female No EAR99

PE71S2043 Absorptive 5 MHz - 2.15 70 2.5 100,000 0.1 D-Sub F Female No 2 x 2 x 1.19 EAR99

PE71S2036 Absorptive 5 MHz - 3 80 3.5 10,000 1 D-Sub SMA Female No 2 x 2 x 1.19 EAR99

PE71S6237 Absorptive 10 MHz - 1 80 1.3 200 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.4 EAR99

PE71S2035 Absorptive 20 MHz - 4.3 80 3 10,000 1 D-Sub SMA Female No 2 x 2 x 1.19 EAR99

PE71S8009 Absorptive 20 MHz - 6 55 2.5 Solder Pin SMA Female No EAR99

PE71S2010 Absorptive 70 MHz - 26.5 55 5 100 0.5 SMA Female SMA Female No 1 x 1.2 x 0.6 EAR99

PE71S2014 Absorptive 70 MHz - 40 55 7 100 0.5 2.92mm 2.92mm No 1 x 1.2 x 0.6 EAR99
Female Female

PE71S2050 Absorptive 100 MHz - 67 40 10.5 100 0.5 SMA Female 1.85mm No 1.2 x 1 x 0.5 EAR99
Female

PE71S6210 Absorptive 500 MHz - 18 55 3.75 100 0.1 Solder Pin SMA Female Yes 1.2 x 0.9 x 0.35 EAR99

PE71S6215 Absorptive 500 MHz - 40 60 6 50 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female
