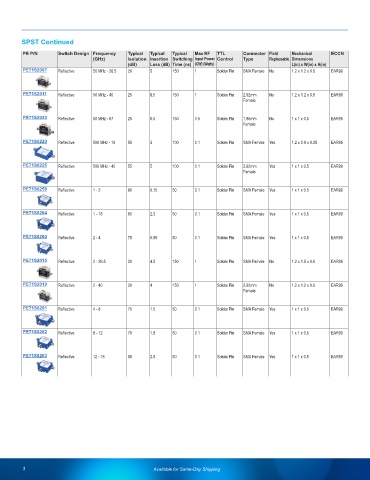

Page 4 - PIN Diode Switches Product Selection Guide

SPST Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2007 Reflective 50 MHz - 26.5 20 5 150 1 Solder Pin SMA Female No 1.2 x 1.2 x 0.6 EAR99

PE71S2011 Reflective 50 MHz - 40 25 6.5 150 1 Solder Pin 2.92mm No 1.2 x 1.2 x 0.6 EAR99
Female

PE71S2023 Reflective 50 MHz - 67 20 8.5 150 0.5 Solder Pin 1.85mm No 1 x 1 x 0.5 EAR99
Female

PE71S6220 Reflective 500 MHz - 18 55 3 100 0.1 Solder Pin SMA Female Yes 1.2 x 0.9 x 0.35 EAR99

PE71S6225 Reflective 500 MHz - 40 55 5 100 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female

PE71S6259 Reflective 1 - 2 80 0.75 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6264 Reflective 1 - 18 65 2.5 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6260 Reflective 2 - 4 75 0.85 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S2015 Reflective 2 - 26.5 20 4.5 150 1 Solder Pin SMA Female No 1.2 x 1.5 x 0.6 EAR99

PE71S2019 Reflective 2 - 40 20 4 150 1 Solder Pin 2.92mm No 1.2 x 1.2 x 0.6 EAR99
Female

PE71S6261 Reflective 4 - 8 75 1.5 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6262 Reflective 8 - 12 70 1.8 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99

PE71S6263 Reflective 12 - 18 65 2.5 50 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.5 EAR99
