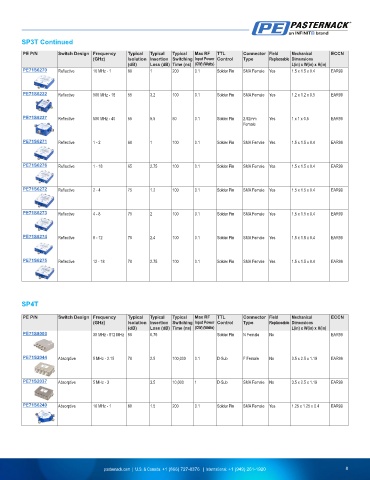

Page 9 - PIN Diode Switches Product Selection Guide

SP3T Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6270 Reflective 10 MHz - 1 60 1 200 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6222 Reflective 500 MHz - 18 55 3.2 100 0.1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6227 Reflective 500 MHz - 40 55 5.5 50 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female

PE71S6271 Reflective 1 - 2 60 1 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6276 Reflective 1 - 18 65 2.75 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6272 Reflective 2 - 4 75 1.2 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6273 Reflective 4 - 8 75 2 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6274 Reflective 8 - 12 70 2.4 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6275 Reflective 12 - 18 70 2.75 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

SP4T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S8003 30 MHz - 512 MHz 50 0.75 Solder Pin N Female No EAR99

PE71S2044 Absorptive 5 MHz - 2.15 70 2.5 100,000 0.1 D-Sub F Female No 3.5 x 2.5 x 1.19 EAR99

PE71S2037 Absorptive 5 MHz - 3 3.5 10,000 1 D-Sub SMA Female No 3.5 x 2.5 x 1.19 EAR99

PE71S6249 Absorptive 10 MHz - 1 60 1.5 200 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99
