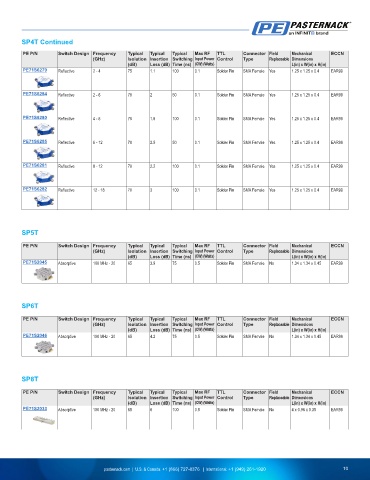

Page 11 - PIN Diode Switches Product Selection Guide

SP4T Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6279 Reflective 2 - 4 75 1.1 100 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

PE71S6284 Reflective 2 - 6 70 2 50 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

PE71S6280 Reflective 4 - 8 70 1.8 100 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

PE71S6285 Reflective 6 - 12 70 2.5 50 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

PE71S6281 Reflective 8 - 12 70 2.2 100 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

PE71S6282 Reflective 12 - 18 70 3 100 0.1 Solder Pin SMA Female Yes 1.25 x 1.25 x 0.4 EAR99

SP5T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2045 Absorptive 100 MHz - 20 65 3.9 75 0.5 Solder Pin SMA Female No 1.34 x 1.34 x 0.45 EAR99

SP6T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2046 Absorptive 100 MHz - 20 65 4.2 75 0.5 Solder Pin SMA Female No 1.34 x 1.34 x 0.45 EAR99

SP8T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2033 Absorptive 100 MHz - 20 65 6 100 0.5 Solder Pin SMA Female No 4 x 0.96 x 0.35 EAR99

10
