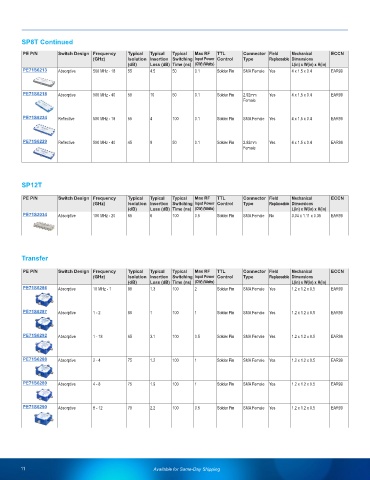

Page 12 - PIN Diode Switches Product Selection Guide

SP8T Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6213 Absorptive 500 MHz - 18 55 4.5 50 0.1 Solder Pin SMA Female Yes 4 x 1.5 x 0.4 EAR99

PE71S6218 Absorptive 500 MHz - 40 50 10 50 0.1 Solder Pin 2.92mm Yes 4 x 1.5 x 0.4 EAR99
Female

PE71S6224 Reflective 500 MHz - 18 55 4 100 0.1 Solder Pin SMA Female Yes 4 x 1.5 x 0.4 EAR99

PE71S6229 Reflective 500 MHz - 40 45 9 50 0.1 Solder Pin 2.92mm Yes 4 x 1.5 x 0.4 EAR99
Female

SP12T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2034 Absorptive 100 MHz - 20 65 6 100 0.5 Solder Pin SMA Female No 3.04 x 1.11 x 0.35 EAR99

Transfer

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6286 Absorptive 10 MHz - 1 80 1.3 100 2 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6287 Absorptive 1 - 2 80 1 100 1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6292 Absorptive 1 - 18 65 3.1 100 0.5 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6288 Absorptive 2 - 4 75 1.2 100 1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6289 Absorptive 4 - 8 75 1.9 100 1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6290 Absorptive 8 - 12 70 2.2 100 0.5 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

11 Available for Same-Day Shipping
