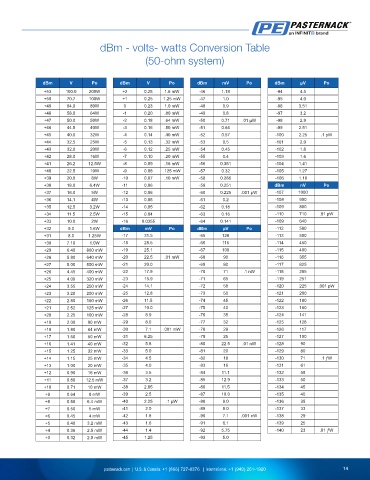

dBm - volts- watts Conversion Table
dBm - volts- watts Conversion Table
(50-ohm system) (50-ohm system)

dBm V Po dBm V Po dBm mV Po dBm µV Po
+53 100.0 200W +2 0.28 1.6 mW -46 1.18 -94 4.5
+50 70.7 100W +1 0.25 1.25 mW -47 1.0 -95 4.0
+49 64.0 80W 0 0.23 1.0 mW -48 0.9 -96 3.51
+48 58.0 64W -1 0.20 .80 mW -49 0.8 -97 3.2
+47 50.0 50W -2 0.18 .64 mW -50 0.71 .01 µW -98 2.9
+46 44.5 40W -3 0.16 .50 mW -51 0.64 -99 2.51
+45 40.0 32W -4 0.14 .40 mW -52 0.57 -100 2.25 .1 pW
+44 32.5 25W -5 0.13 .32 mW -53 0.5 -101 2.0
+43 32.0 20W -6 0.12 .25 mW -54 0.45 -102 1.8
+42 28.0 16W -7 0.10 .20 mW -55 0.4 -103 1.6
+41 26.2 12.5W -8 0.09 .16 mW -56 0.351 -104 1.41
+40 22.5 10W -9 0.08 .125 mW -57 0.32 -105 1.27
+39 20.0 8W -10 0.07 .10 mW -58 0.286 -106 1.18
+38 18.0 6.4W -11 0.06 -59 0.251 dBm nV Po
+37 16.0 5W -12 0.06 -60 0.225 .001 µW -107 1000
+36 14.1 4W -13 0.05 -61 0.2 -108 900
+35 12.5 3.2W -14 0.05 -62 0.18 -109 800
+34 11.5 2.5W -15 0.04 -63 0.16 -110 710 .01 pW
+33 10.0 2W -16 0.0355 -64 0.141 -109 640
+32 9.0 1.6W dBm mV Po dBm µV Po -112 580
+31 8.0 1.25W -17 31.5 -65 128 -113 500
+30 7.10 1.0W -18 28.5 -66 115 -114 450
+29 6.40 800 mW -19 25.1 -67 100 -115 400
+28 5.80 640 mW -20 22.5 .01 mW -68 90 -116 355
+27 5.00 500 mW -21 20.0 -69 80 -117 825
+26 4.45 400 mW -22 17.9 -70 71 .1 nW -118 285
+25 4.00 320 mW -23 15.9 -71 65 -119 251
+24 3.55 250 mW -24 14.1 -72 58 -120 225 .001 pW
+23 3.20 200 mW -25 12.8 -73 50 -121 200
+22 2.80 160 mW -26 11.5 -74 45 -122 180
+21 2.52 125 mW -27 10.0 -75 40 -123 160
+20 2.25 100 mW -28 8.9 -76 35 -124 141
+19 2.00 80 mW -29 8.0 -77 32 -125 128
+18 1.80 64 mW -30 7.1 .001 mW -78 29 -126 117
+17 1.60 50 mW -31 6.25 -79 25 -127 100
+16 1.41 40 mW -32 5.8 -80 22.5 .01 nW -128 90
+15 1.25 32 mW -33 5.0 -81 20 -129 80
+14 1.15 25 mW -34 4.5 -82 18 -130 71 .1 ƒW
+13 1.00 20 mW -35 4.0 -83 16 -131 61
+12 0.90 16 mW -36 3.5 -84 11.1 -132 58
+11 0.80 12.5 mW -37 3.2 -85 12.9 -133 50
+10 0.71 10 mW -38 2.85 -86 11.5 -134 45
+9 0.64 8 mW -39 2.5 -87 10.0 -135 40
+8 0.58 6.4 mW -40 2.25 .1 µW -88 9.0 -136 35
+7 0.50 5 mW -41 2.0 -89 8.0 -137 33
+6 0.45 4 mW -42 1.8 -90 7.1 .001 nW -138 29
+5 0.40 3.2 mW -43 1.6 -91 6.1 -139 25
+4 0.36 2.5 mW -44 1.4 -92 5.75 -140 23 .01 ƒW
+3 0.32 2.0 mW -45 1.25 -93 5.0
