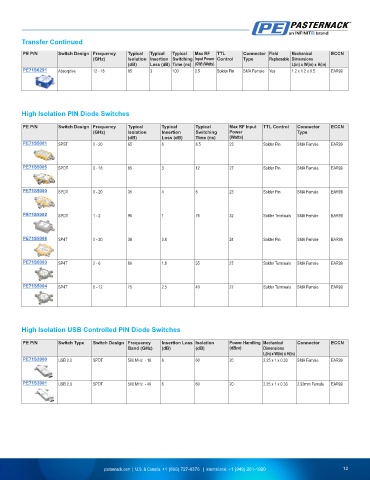

Page 13 - PIN Diode Switches Product Selection Guide

Transfer Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6291 Absorptive 12 - 18 65 3 100 0.5 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

High Isolation PIN Diode Switches

PE P/N Switch Design Frequency Typical Typical Typical Max RF Input TTL Control Connector ECCN
(GHz) Isolation Insertion Switching Power Type
(dB) Loss (dB) Time (ns) (Watts)
PE71S5001 SPST 0 - 20 65 6 8.5 23 Solder Pin SMA Female EAR99

PE71S5005 SPDT 0 - 18 65 3 12 27 Solder Pin SMA Female EAR99

PE71S5000 SPDT 0 - 20 35 4 5 23 Solder Pin SMA Female EAR99

PE71S5002 SPDT 1 - 2 90 1 75 32 Solder Terminals SMA Female EAR99

PE71S5006 SP4T 0 - 20 38 3.8 24 Solder Pin SMA Female EAR99

PE71S5003 SP4T 2 - 6 80 1.8 35 27 Solder Terminals SMA Female EAR99

PE71S5004 SP4T 6 - 12 75 2.5 40 27 Solder Terminals SMA Female EAR99

High Isolation USB Controlled PIN Diode Switches

PE P/N Switch Type Switch Design Frequency Insertion Loss Isolation Power Handling Mechanical Connector ECCN
Band (GHz) (dB) (dB) (dBm) Dimensions
L(in) x W(in) x H(in)
PE71S3900 USB 2.0 SPDT 500 MHz - 18 6 60 20 2.25 x 1 x 0.33 SMA Female EAR99

PE71S3901 USB 2.0 SPDT 500 MHz - 40 6 60 20 2.25 x 1 x 0.33 2.92mm Female EAR99

12
