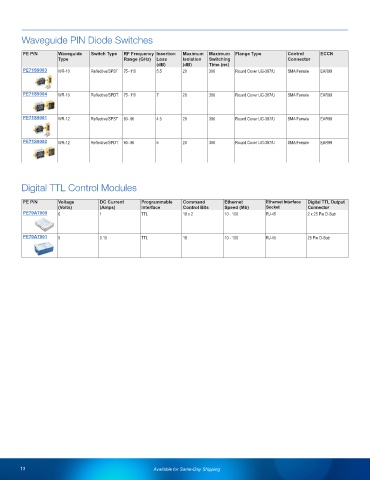

Page 14 - PIN Diode Switches Product Selection Guide

Waveguide PIN Diode Switches

PE P/N Waveguide Switch Type RF Frequency Insertion Maximum Maximum Flange Type Control ECCN
Type Range (GHz) Loss Isolation Switching Connector
(dB) (dB) Time (ns)
PE71S9003 WR-10 Reflective/SPST 75 - 110 5.5 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9004 WR-10 Reflective/SPDT 75 - 110 7 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9001 WR-12 Reflective/SPST 60 - 90 4.5 20 300 Round Cover UG-387/U SMA Female EAR99

PE71S9002 WR-12 Reflective/SPDT 60 - 90 6 20 300 Round Cover UG-387/U SMA Female EAR99

Digital TTL Control Modules

PE P/N Voltage DC Current Programmable Command Ethernet Ethernet Interface Digital TTL Output
(Volts) (Amps) Interface Control Bits Speed (Mb) Socket Connector
PE70A7000 6 1 TTL 18 x 2 10 - 100 RJ-45 2 x 25 Pin D-Sub

PE70A7001 5 0.15 TTL 18 10 - 100 RJ-45 25 Pin D-Sub

13 Available for Same-Day Shipping
