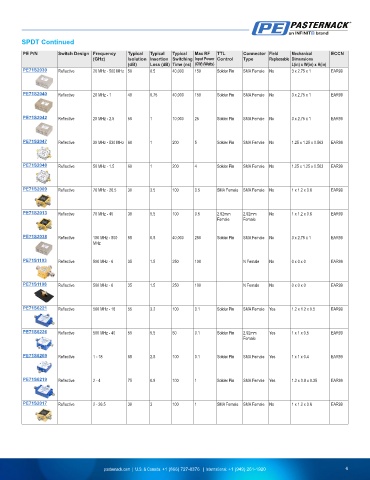

Page 7 - PIN Diode Switches Product Selection Guide

SPDT Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2039 Reflective 20 MHz - 500 MHz 50 0.5 40,000 150 Solder Pin SMA Female No 3 x 2.75 x 1 EAR99

PE71S2040 Reflective 20 MHz - 1 40 0.75 40,000 150 Solder Pin SMA Female No 3 x 2.75 x 1 EAR99

PE71S2042 Reflective 20 MHz - 2.5 50 1 10,000 25 Solder Pin SMA Female No 3 x 2.75 x 1 EAR99

PE71S2047 Reflective 30 MHz - 530 MHz 60 1 200 5 Solder Pin SMA Female No 1.25 x 1.25 x 0.563 EAR99

PE71S2048 Reflective 50 MHz - 1.5 60 1 200 4 Solder Pin SMA Female No 1.25 x 1.25 x 0.563 EAR99

PE71S2009 Reflective 70 MHz - 26.5 30 3.5 100 0.5 SMA Female SMA Female No 1 x 1.2 x 0.6 EAR99

PE71S2013 Reflective 70 MHz - 40 30 5.5 100 0.5 2.92mm 2.92mm No 1 x 1.2 x 0.6 EAR99
Female Female

PE71S2038 Reflective 100 MHz - 500 55 0.5 40,000 250 Solder Pin SMA Female No 3 x 2.75 x 1 EAR99
MHz

PE71S1103 Reflective 500 MHz - 6 35 1.5 250 100 N Female No 0 x 0 x 0 EAR99

PE71S1108 Reflective 500 MHz - 6 35 1.5 250 100 N Female No 0 x 0 x 0 EAR99

PE71S6221 Reflective 500 MHz - 18 55 3.2 100 0.1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6226 Reflective 500 MHz - 40 55 5.5 50 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female

PE71S6269 Reflective 1 - 18 65 2.5 100 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.4 EAR99

PE71S6219 Reflective 2 - 4 75 0.9 100 1 Solder Pin SMA Female Yes 1.2 x 0.9 x 0.35 EAR99

PE71S2017 Reflective 2 - 26.5 30 3 100 1 SMA Female SMA Female No 1 x 1.2 x 0.6 EAR99
