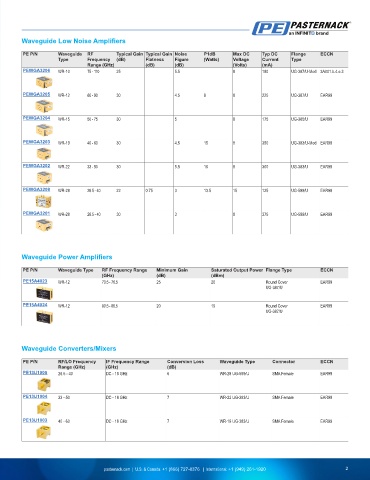

Page 3 - Waveguides Product Selection Guide

Waveguide Low Noise Amplifiers
PE P/N Waveguide RF Typical Gain Typical Gain Noise P1dB Max DC Typ DC Flange ECCN
Type Frequency (dB) Flatness Figure (Watts) Voltage Current Type
Range (GHz) (dB) (dB) (Volts) (mA)
PEWGA3206 WR-10 75 - 110 25 5.5 8 180 UG-387/U-Mod 3A001.b.4.e.3

PEWGA3205 WR-12 60 - 90 30 4.5 8 8 225 UG-387/U EAR99

PEWGA3204 WR-15 50 - 75 30 5 8 175 UG-385/U EAR99

PEWGA3203 WR-19 40 - 60 30 4.5 15 8 350 UG-383/U-Mod EAR99

PEWGA3202 WR-22 33 - 50 30 5.5 10 8 300 UG-383/U EAR99

PEWGA3208 WR-28 26.5 - 40 22 0.75 3 13.5 15 125 UG-599/U EAR99

PEWGA3201 WR-28 26.5 - 40 30 3 8 375 UG-599/U EAR99

Waveguide Power Amplifiers

PE P/N Waveguide Type RF Frequency Range Minimum Gain Saturated Output Power Flange Type ECCN
(GHz) (dB) (dBm)
PE15A4023 WR-12 70.5 - 76.5 25 20 Round Cover EAR99
UG-387/U

PE15A4024 WR-12 80.5 - 86.5 20 19 Round Cover EAR99
UG-387/U

Waveguide Converters/Mixers

PE P/N RF/LO Frequency IF Frequency Range Conversion Loss Waveguide Type Connector ECCN
Range (GHz) (GHz) (dB)
PE13U1005 26.5 - 40 DC - 18 GHz 6 WR-28 UG-599/U SMA Female EAR99

PE13U1004 33 - 50 DC - 18 GHz 7 WR-22 UG-383/U SMA Female EAR99

PE13U1003 40 - 60 DC - 18 GHz 7 WR-19 UG-383/U SMA Female EAR99
